2D material Detection and Transfer System

for fabricating 2D heterostructures, magic angle devices,

twistronics devices

Achieve Precise and Reproducible fabrication for moiré superlattice, magic angle (1.1° for superconductivity) twisted device, exciton superlattices so-called for twistronics,

2D Detector

Innovative Features:

"A unique feature available only in our system: automatic detection and localization of 2D materials prior to transfer."
vacuum chucks: Secure wafer handling is achieved using a vacuum chuck during the pickup and transfer process. With a spacious stage capable of holding up to five vacuum chucks, multiple 2D materials can be prepared simultaneously. This unique design significantly streamlines the fabrication of van der Waals heterostructures, enabling researchers to quickly alternate between different materials and build complex multilayer devices with maximum efficiency.

User Convenience:

Rotation stage for sample (optionally motorized): compatible for "Tear-and-Stack" method for twisted van der Waals heterostructures (0.1° rotation accuracy guaranteed )
Tilt stages (goniometer and rotation stage) for stampCompact design allowing installation in a glove box for air sensitive materials.
Stamp stage: Z-axis motorized, (Optional, XY-motorized), accurate speed, distance control from PC application
The Transfer system can be ordered either together with a 2D detector or separately.

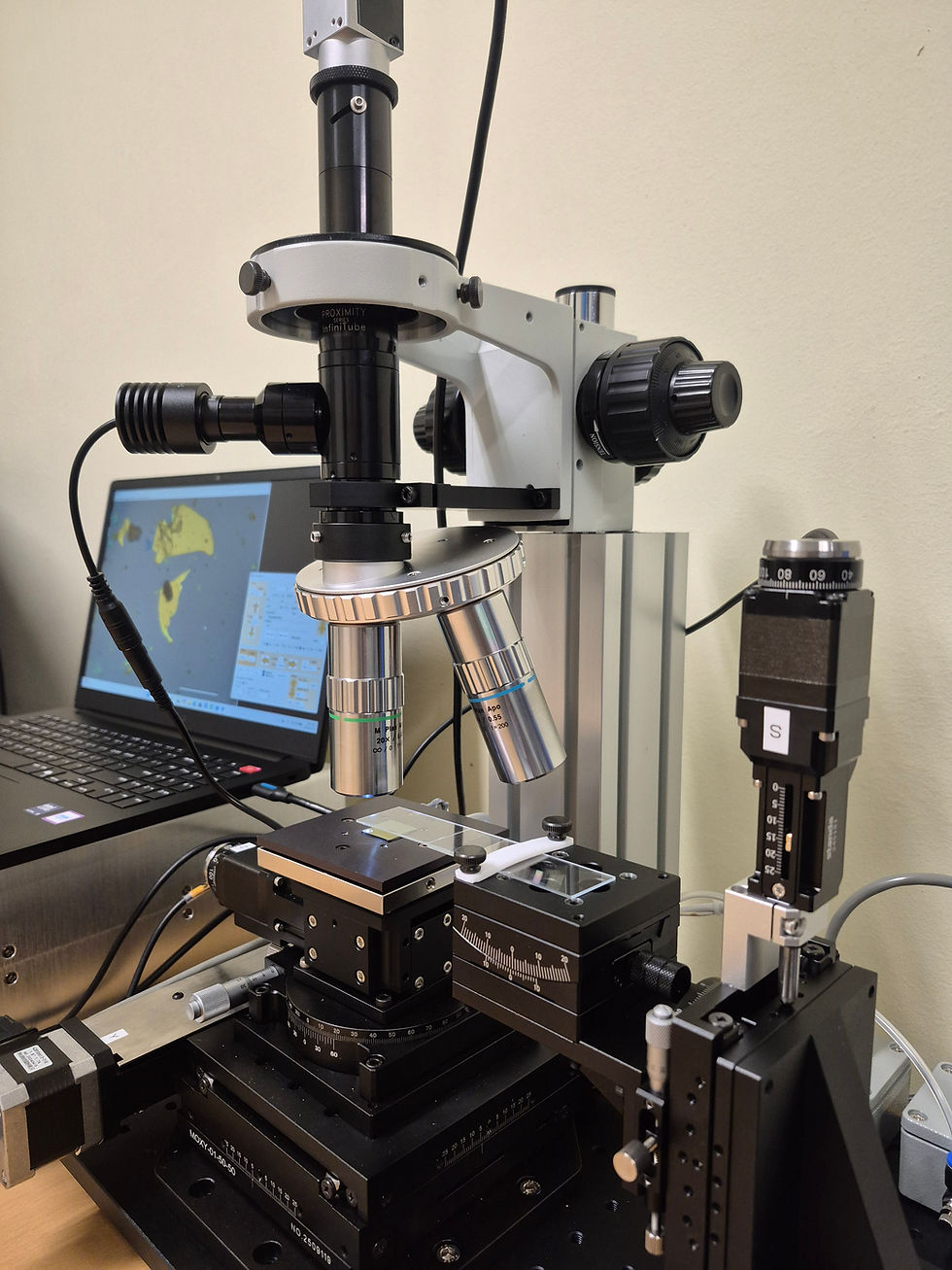

2d Detection Process on the Rotation Heater Stage

Motorized Stamp Stage for Accurate Position and Speed Control

Specification:

Sample scan range: 5cm x 5cm maximum
Objective lens: 20x(basic), 10x, 50x (all compatible, but not included in basic model)
materials: graphene, hBN, TMDC, MXene, etc including all 2d materials
substrate: SiO2/Si, glass,
detection speed: 1.3 sec/frame
stamp stage z-scan speed: 1 - 1000 um/sec.
Sample stage speed: 2500 um/sec.
image format: jpg file
coordinate: recorded in file name
Heater Stage: 80 mm × 80 mm, Up to 200 °C
PID Temperature Control from PC app.
